Analizador de gas GDS GDS-68XP con cabeza sensora de acero inoxidable configurada para Mercaptano (TBM) con rango 0-50 mg/m3. Usa muestreo periódico para extender la vida del sensor y minimizar des GASte del gas. Salida de 4-20 mA. Opcional se puede incluir 3 relés de alarma e interfaz MODBUsesclava. Diseñado para instalaciones en áreas de Clase I Div 1. A prueba de explosión.

Parte# con Opciones:        GDS-68XP1/1-30-05/1-0-0
Precio con Opciones:        Favor de solicitar precio via Email

Opciones:

Entrada
(1) Tipo de entrada para GDS68XP
Salida
(2) Salida para GDS68XP
Gabinete
(3) Gabinete para GDS68XP
Todas los gabinetes incluyen accesorios de mamparos de acero inoxidable como es necesario.
Calefactor
(4) Calefactor para GDS68XP
La integración del calentador incluye la alineación correcta de la entrada del instrumento y los accesorios de salida con los accesorios de cierre, que van en el mismo gabinete, así como el costo de los mismos accesorios asi como el aislamiento de 1/2 pulgada de grueso que la fábrica instala en los laterales y la parte posterior del gabinete si hay un calentador. Todo esto se incluye en el costo

  Tiempo de Embarque 4 Semanas  ]

GDS-68XP Process Gas Monitor

The GDS-68XP H2S Monitor for Low Oxygen Applications uses sequencing technology to directly measure hydrogen, hydrogen sulfide, mercaptans or other gases in a stream that contains low levels of oxygen. By alternatively applying sample gas and clean purge air to the sensor, the GDS-68XP delivers longer sensor life and significantly reduces the amount of sample gas released to the atmosphere.

Today, most H2S measurements are monitored either by lead acetate tape analyzers or once-a-day colorimetric gas detector tubes. “Pull tubes” are easy to use, but require on-site personnel and can be notoriously inaccurate. In addition, one sample per day may not be sufficient to track changes in the levels of H2S or other gases brought on by variations in temperature or process. Tape units are more accurate, but require continuous maintenance and monthly tape replacement.

The GDS-68XP offers an alternative to expensive analyzers while providing up to 96 samples per day. Programmable sample and purge intervals allow the user to determine the optimum balance between sample rate, sensor life and sample gas released to ambient air.

The GDS-68XP contains a microprocessor controlled sequencer that manages the sample / purge cycle and maintains the sampled output during purge air operation. An integrated dual-channel GASMAX II gas monitor provides the sensor interface and signal conditioning, calibration, continuous reading display and optional alarm relays with MODBUS slave interface.

An internal real-time clock and event log time-stamps calibration and alarm events for later review, while the menu- driven operator interface eliminates all analog potentiometers and allows setup and calibration without hazardous area declassification.

The GDS-68XP can be configured for ‘draw from ambient’ or ‘positive pressure’ modes of operation. An integrated Run / Cal valve and user prompted calibration procedure make routine maintenance and field ‘bump tests’ quick and easy.

Reliability in Hostile Environments

Utilizing a long-life brushless DC pump, the GDS-68XP H2S Monitor is designed for installation in hazardous areas rated Class I, Div 1. For low temperature applications where highest accuracy and response are needed, an optional heater can be included if an enclosure is specified.

FEATURES

  • Designed for use in Class I, Div 1 Hazardous Locations
  • Periodic measurement on intervals from 5 minutes to six hours
  • Reliable electrochemical sensor technology for accurate readings
  • Automatic overrrange detection lenghtens sensor life
  • Built-in flow meter provides visual confirmation of sample flow rate
  • Prompted calibration procedure and cal port for easy maintenance
  • Accepts sample lines up to 100 ft in length
  • Optional 3x alarm relays and MODBUS slave interface
  • GASMAX auto-recognition of Smart Sensors
  • High quality diaphragm pump with 24VDC brushless motor
  • Calibration in hazardous area requires simple magnetic wand
  • Manufactured in USA
APPLICATIONS

  • Gas Pipeline Monitoring
  • Water / Wastewater Treatment
  • Custody Transfer Compliance
  • Scrubber Breakthrough
  • BioGas Digesters

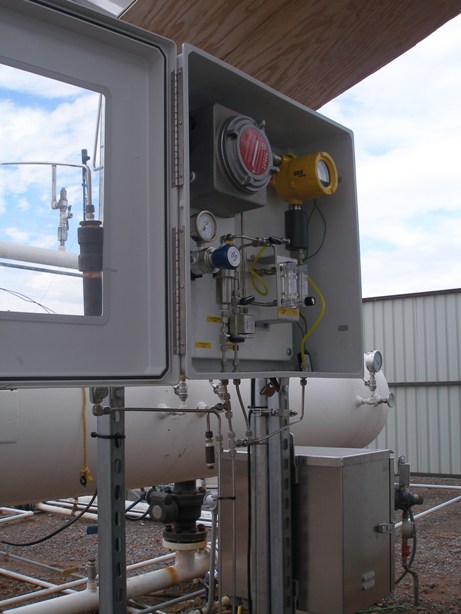

Installed GDS-68 Methane stream monitor

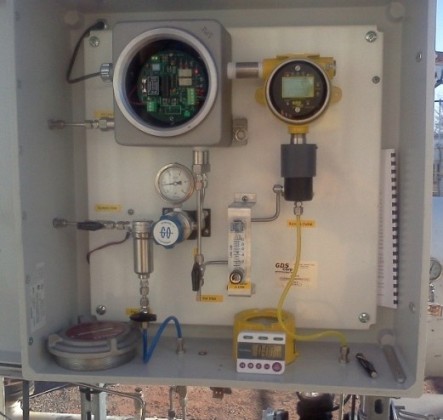

Internal parts of a GDS-68 Methane stream monitor

GDS-68XP SPECIFICATIONS
Power Input: 24VDC +/- 5% at < 10 watts.
Optional 110/220VAC power supply in separate enclosure.
Heater requires 110/220VAC at 200 watts max
Display Backlit 64 x 128 pixel LCD with 30-minute trend
Sensor Highly sensitive electrochemical sensor for Hydrogen, Hydrogen Sulfide, Mercaptans or THT.
Standard Output Standard 3-wire 4-20mA current source. Max loop R is 750 ohms with nominal 24VDC power supply.
Optional Output Three Form C Relays 5A @ 30VDC / 240VAC plus RS-485 2-wire MODBUS® slave interface.
Fault relay indicates sensor FAULT or LOW FLOW FAULT
Sample / Purge Pump Long life 1.6 diaphragm pump with brushless 24VDC motor.
Pull from vacuum up to 6” Hg (3 psig)
Sample Conditioning (Type 1 Draw ) For ambient pressure applications. Low pressure stainless steel coalescing filter with Pyrex bowl (max pressure 100 psig). Filter element PVDF fluorcarbon for removal of liquid aerosols, 99.99% removal of 0.1 micron particles.
Sample Conditioning (Type 3 Pressure ) High high pressure applications with low levels of entrained moisture. High pressure stainless steel regulator to 3000 psig inlet. Low side stainless steel coalescing filter with Pyrex bowl (max pressure 100 psig). Filter element PVDF fluorcarbon for removal of liquid aerosols, 99.99% removal of 0.1 micron particles.
Sample Conditioning (Type 4 Pressure ) High pressure applications with high levels of entrained moisture. High pressure stainless steel regulator to 3000 psig inlet. Low side stainless steel dual coalescing / membrane filter (max pressure 1500 psig). Coalescing filter element PVDF fluorcarbon for removal of liquid aerosols, 99.99% removal of 0.1 micron particles.
Sample Temp +5°C (+41°F) to +50°C (+122°F)
Operating Temp 0°C (-13°F) to +50°C (+122°F)
Construction XP enclosure: Cast aluminum.
GASMAX II: Aluminum housing with epoxy paint standard;
Exterior stainless steel tubing and fittings. Backplate epoxy painted steel
Dimensions (Plate only) 21” x 21” x 8”
11.3 Kg / 25 pounds
Dimensions (NEMA 4X) 24” x 24” x 8” Non-metallic or Stainless Steel Enclosure 20 Kg / 45 pounds
Inlet / Outlet 1/4” compression, stainless steel
Approvals Designed for use in Class I, Div 1 hazardous areas, Groups B, C, D. Suitable for Explosion-Proof installations
Warranty Electronics - 2 years from date of purchase
Sensor - 1 year from date of purchase. Note: Electrochemical sensor must be powered within three months of shipment or sensor life may be adversely affected.
