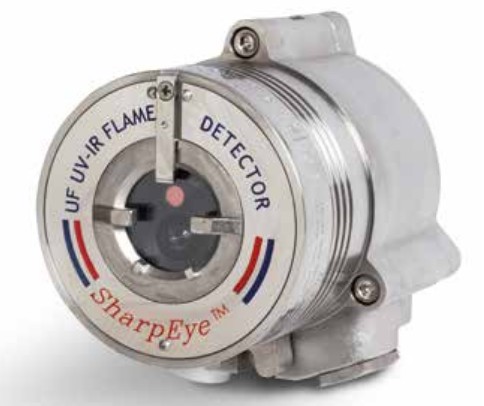

SPECTREX  40/40UFL-111AF

SPECTREX 40/40UFL-111AF (1)
  • DESCRIPCION
  • CARACTERISTICAS
  • ESPECIFICACIONES
  • LITERATURA

Detector de Flama óptico de alta velocidad SPECTREX SharpEye 40/40UFL UV-IR para incendios de combustible y gasa base de hidrocarburos. Respuesta de alta velocidad (20 ms), alta fiabilidad y con inmunidad a falsas alarmas. Diseño basado en especificacionesmilitares. 2 relés (alarma y falla), salida analógica de 0-20mA para detección rápida. Compatible con RS-485 Modbus. Característica Built-In-Test (BIT) automática y manual incluida. Aprobado para Ex Zona 1, ATEX, IECEx, FM, CSA Clase I Div. 1 y SIL2 (TUV) bajo la norma IEC 61508. 5 años de garantía.

Solicitud de Información

The new SharpEye UV-IR High-Speed Optical Flame detector 40/40UFL is designed to meet two major requirements:

  • High-Speed Response (20 msec)
  • High Reliability (immunity to false alarm)

This detector is based on our well known military detector used in Armored Vehicle Explosion Suppression System combined with the industrial UV-IR detectors 20/20LB and 40/40LB.

The UV/IR flame detector senses radiant energy in the short wave section of both the ultraviolet and infrared portions of the electromagnetic spectrum. The signals from both sensors are analyzed for frequency, intensity and duration. Simultaneous detection of radiant energy inn both the UV and IR sensors triggers an alarm signal.

The UV sensor incorporates a special logic circuit that helps prevent false alarms caused by solar radiation.

Features
  • UV/IR Dual-Sensor
  • High-Speed Response - 20 msec to flash fire
  • Solar blind
  • Automatic Built-In-Test (BIT) - to assure continued reliable operation
  • Heated window - for operation in harsh weather conditions (snow, ice, condensation)
  • Multiple output options for maximum flexibility and compatibility
    • Relays (2) for Alarm and Fault
    • Analogue output for fast detection
    • 0-20mA (stepped)
    • HART Protocol for maintenance and asset management
    • RS-485, Modbus Compatible
  • High Reliability - MTBF - minimum 150,000 hours
  • Approved to Safety Integrity Level 2 (SIL2 – TUV)
  • 5-Year Warranty
  • User Programmable via HART or RS-485
  • Ex approved for Zone 1 hazardous area location
    • ATEX Approved
    • IECEx Approved
    • FM/FMC Pending
  • 3rd party Performance Tested
    • EN54-10 (VdS Pending)
    • FM3260
Applications
  • Explosives & munitions
  • Offshore Oil & Gas
  • Onshore Oil & Gas
  • Petrochemical plants
  • Storage tank farms
  • Aircraft hangars
  • Chemical plants
  • Power generation facilities
  • Pharmaceutical industry
  • Printing industry
  • Warehouses
  • Automotive industry
  • Waste disposal facilities
  • Aerospace industry

GENERAL SPECIFICATIONS
Spectral ResponseUV: 0.185 - 0.260 μm;
IR: 2.5-3.0 μm
Detection Range
(at highest Sensitivity Setting for 1ft2 (0.1m2) pan fire)
Fuel ft / m
n-Heptane 65 / 20
Gasoline 65 / 20
Diesel Fuel 50 / 13.5
JP5 42 / 14
Kerosene 42 / 14
Ethanol 95% 23 / 7
Methanol 26 / 8
IPA (Isopropyl Alcohol 43 / 13
Hydrogen** 23 / 7
Methane* 16 / 5
LPG * 16 / 5
Polypropylene Pellets 16 / 5
Ammonia * 16 / 5
Silane * 20 / 6
Office Paper 16 / 5
* 20" (0.5m) high, 8" (0.2m) width plume fire
Response Time Typically 3 seconds. High speed 20 msec to flash fire
Adjustable Time Delay Up to 30 seconds
Sensitivity Ranges 1 ft2 (0.1m2) n-heptane pan fire from 65 ft (20m)
Field of View Horizontal 100º; Vertical 90º
Built-in-Test (BIT) Automatic (and Manual)
Temperature Range Operating: -67ºF to +167ºF (-55ºC to +75ºC)
Option: -67ºF to +185ºF (-55ºC to +85ºC)
Storage: -67ºF to +185ºF (-55ºC to +85ºC)
HumidityUp to 95% non-condensing (withstands up to 100% RH for short periods)
Heated Optics To eliminate condensation and icing on the window
ELECTRICAL SPECIFICATIONS
Operating Voltage 24 VDC nominal (18-32 VDC)
Power Consumption Standby: Max. 90mA (110mA with heated window)
Alarm: Max. 130mA (160mA with heated window)
Cable Entries 2 x 3/4" - 14NPT conduits or 2 x M25 x 1.5 mm ISO
Wiring 12 - 22AWG (2.5mm 2 - 0.3mm 2)
Electrical Input Protection According to MIL-STD-1275B
Electromagnetic CompatibilityEMI/RFI protected to EN61326-3 and EN61000-6-3
Electrical Interface The detector includes twelve (12) terminals with five (5) wiring options (factory set)
OUTPUTS
RelaysAlarm, Fault and Auxiliary
SPST volt-free contacts rated 2A at 30 VDC
Analogue Output4-4.7V at detection
0-20mA (stepped) Sink (source option) configuration
Fault: 0 +1mA
BIT Fault: 2mA ± 10%
Normal: 4mA ± 10%
IR: 8mA ± 5%
UV: 12mA ± 5%
Warning: 16mA ± 5%
Alarm: 20mA ± 5%
Resistance Loop: 100-600 Ω
HART Protocol Optional HART communications on the 0-20mA analog current (FSK) - used for maintenance, configuration changes and asset management, available in mA source output wiring options
RS-485 RS-485 Modbus compatible communication link that can be used in computer controlled
installations
MECHANICAL SPECIFICATIONS
Materials
Enclosure options
- Stainless Steel 316L with electro polish finish
- Heavy duty copper free aluminum (less than 1%), red epoxy enamel finish (not available in FM version)
Mounting Stainless Steel 316L with electro polish finish
Dimensions Detector 4" x 4.6" x 6.18" (101.6 x 117 x 157 mm)
Weight Detector (St.St.) 6.1 lb (2.8 kg)
Detector, aluminum 2.8 lb (1.3 kg)
Tilt mount 2.2 lb (1.0 kg)
Environmental Standards Meets MIL-STD-810C for Humidity, Salt & Fog, Vibration, Mechanical Shock, High Temp, Low Temp
Water and Dust IP66 and IP67 per EN60529, NEMA 250 6P
APPROVALS
Hazardous Area
ATEX and IECEx Ex II 2 GD,
  Ex de IIC (Ta -55ºC to + 75oC) Ex de IIC (Ta -55ºC to + 85oC)
  Ex tD A21 IP66/X7 T 95ºC Ex tD A21 IP66/X7 T 105ºC
FM/FMC Class I Div. 1, Groups B, C & D
  Class II/III Div. 1, Groups E, F & G
PerformanceEN54-10 (VdS Pending)
FM-3260
ReliabilityIEC61508 - SIL2 (TUV)
Export Info
Fabricado enUnited States
Codigo Arancelario90318099
