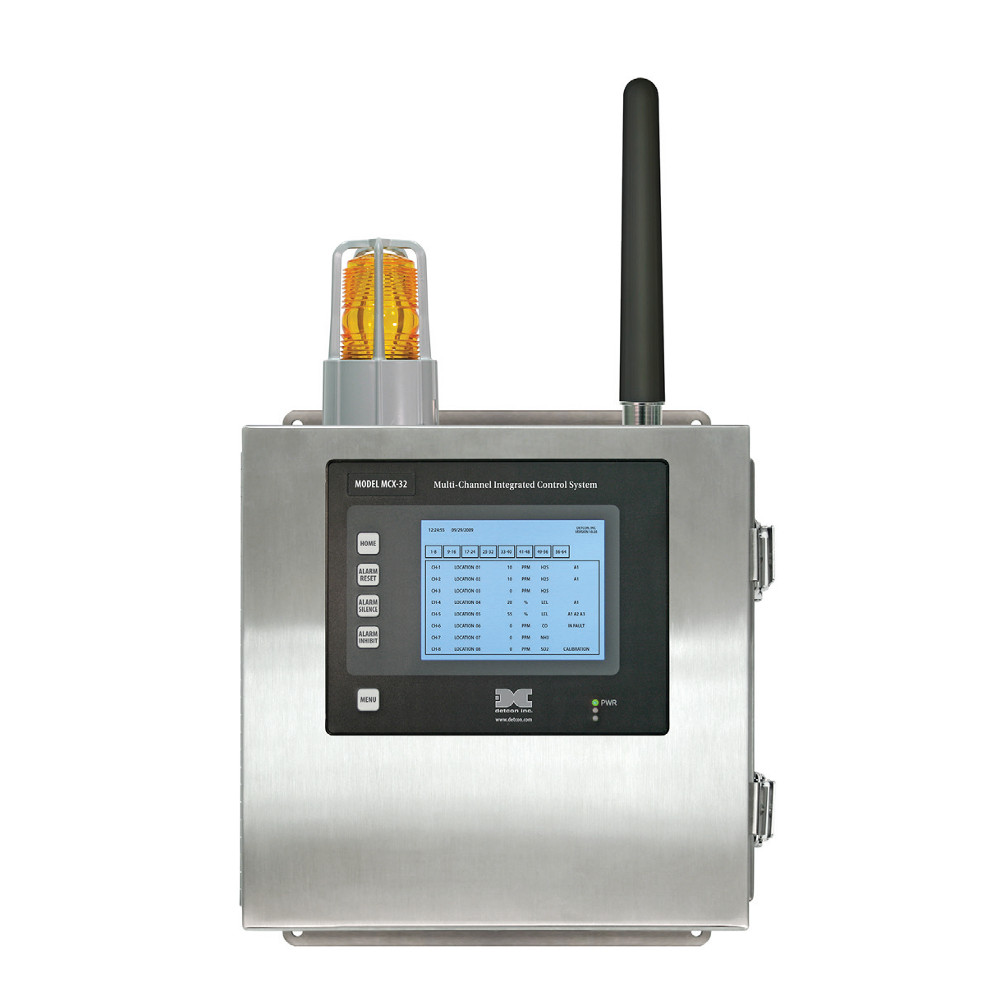

Sistema control y alarma expansible Detcon SmartWireless MCX-32 para detectores de gas, transceptores, alarmas y otros dispositivos de campo. Acepta entradas de 4-20 mA o RS-485 Modbus. Hasta 64 canales. Pantalla LCD táctil grande. Gabinete NEMA 4X.

Solicitud de Información

Detcon’s SmartWireless® MCX-32 is a flexible and expandable multi-channel control system compatible with a wide range of wired and wireless gas detectors, transceivers, alarms, and other field devices. The advanced control system can include up to 64 channels of any combination of wired and/or wireless field devices.

Real time status of each active field device is displayed on a large backlit LCD Touch Screen that also serves as a user interface. Command functions can also be displayed on the touch screen and include alarm reset, alarm acknowledge, alarm test, and radio silence. During normal operation the screen shows real time gas concentrations or the status of field devices to include battery charge level, network RF signal quality, and any number of fault conditions affecting either an individual device or the entire network. Display formats include field device function, tag name, current reading, and alarm status. Each input can be configured for up to 3 alarm levels with a fourth-alarm output dedicated to fault diagnostics of field devices and internal operating systems. Each system application can include either a common or a limited number of discrete alarm relays.

Among the SmartWireless MCX-32’s specialized features is “auto-configuration” of addressable devices that are located in a device library within the unit. This provides a unique combination of “auto configuration” simplicity and ease, with customizable expansion capabilities. The control system is also fitted with a 10/100 BaseT Ethernet Port, allowing users to safely monitor a network remotely with the convenience of a desktop PC, or handheld device with internet connection. An addressable RS-485 Modbus RTU slave port is available for communication with higher level automation and control systems such as PLC’s, PC’s and Distributed Control Systems. The SmartWireless MCX-32 offers standard datalogging of alarms, calibrations, comm errors and faults, as well as 15-minute peak and average readings for each channel using Type I or Type II compact flash cards.

Wired devices with either a 4-20mA DC or serial RS-485 output can be interfaced with the control system individually or by using Detcon’s stackable din-rail mounted I/O modules. Detcon I/O modules include a 4-channel 4-20mA input module (DA-4), a 4-alarm relay output module (RL-4), a 4-channel 4-20mA output module (AO-4), and a 4-relay contact input module (DI-4). The I/O modules may be mounted within the main system enclosure or in separate enclosures suitable for the area classification where installation will occur. All I/O modules are individually addressable and operate on 11.5-30VDC. The SmartWireless MCX- 32 is available in either fiberglass or stainless steel NEMA 4X enclosures and can be powered by 110-230 VAC or 24 VDC. The control system is intended for installation inside buildings or under cover avoiding direct sunlight.

Additional ordering options include audio alarm, visual alarm, external alarm port, alarm reset switch, 10-meter separation antenna, and battery backup.

Features
  • Compatible with Model RXT-320 Transceivers
  • 64 channel capacity
  • Large LCD with touch-screen user interface
  • Wireless, analog, or Modbus input capability
  • Comprehensive integral data logging
  • Non-intrusive operator interface
Applications
  • Oil and Gas Drilling Rigs
  • Oil and Gas Production Sites
  • Wastewater Treatment Plants
  • Food and Beverage Processing
  • Pulp and Paper Mills
  • Refining and Petrochemical

Systems Specifications
Input/Output 2.4Ghz DSSS Radio Transmission
Wired device inputs: 4-20mA (using DA-4 Modules)
RS-485 Modbus TM RTU
Contact closure (using RL-4 Modules)
Capacity Up to 64 Input Devices
Display 5.8” Monochrome Backlit LCD (sunlight readable)
Resistive analog touch-screeen
Brightness 165 cd/m2
Backlight MTBF: 20,000 hour typ.
Warranty One Year
Mechanical Specifications
Operating Temperature Range -4oF to + 158oF, -20oC to + 70oC
Storage Temperature Range -40oF to + 185oF, -40oC to + 85oC
Operating Humidity Range 0-99% RH non-condensing
Mechanical Specifications
Dimensions SmartWireless MCX-32-N4X, 16”W x 27.9”H x 9.5”D
SmartWireless MCX-32-SS, 14”W x 26”H x 8.2”D
Optional Visual Alarm
Light Output 1.75 Joules per flash
Lamp Type Xenon strobe lamp
Flash Rate 60 to 80 flashes per minute
Optional Audio Alarm
Mode of Operation Continuous Tone
Frequency 2900 Hz ± 500 Hz
Loudness 80 - 90 dB(A) min. @ 2 FT @ 6 - 28 Vdc
Electronical Specifications
Power Input 110-230 VAC: 24VDC nominal (20 - 28VDC)
Optional battery backup
Power Consumption Base MCX-32 Controller: 14 Watts @ 24 VDC
Total power dependent on:
Number of I/O Modules
Number of Gas Sensors not to exceed 80 watts
Electrical Classification Model SmartWireless MCX-32-N4X, NEMA 4X
Model SmartWireless MCX-32-SS, NEMA 4X
Performance Transmit Power Output: 18dBm
RF Outdoor RF Line of Sight (with standard antenna): 1.5 Miles
Interface Data Rate: 9,600bps
Throughput Data Rate: 19,200bps
RF Data Rate: 250,000bps
Transceiver Sensitivity: -102dBm
Frequency: 2.40-2.48GHz
RF Channels: 16, each 5Mz Wide
Output Power: 100mW (20.5dBm) EIRP
Spread Spectrum: DSSS (Direct Sequence Spread Spectrum)
Modulation: 0-QPSK
Supported Network Topologies: Mesh, Point-to-Point
Antenna 5db Flex Whip; Screw on Radome Whip Antenna Guard Included
Optional 7db omnidirectional 10 meter separation antenna
I/O Protection Over-voltage, Miswiring, EMI/RFI Immunity
Environmental Specifications
Operating Temperature Range 0°C to +50°C; 32°F to +122°F
Storage Temperature Range -20°C to +70°C; -4°F to +158°F
Export Info
Fabricado enUnited States
Codigo Arancelario85318025
